Co-developed a 5DOF robotic arm and built the software needed to reason about its movement. The project combined physical hardware with mathematical modeling and graphical simulation.
← Back to Projects
Project Case Study

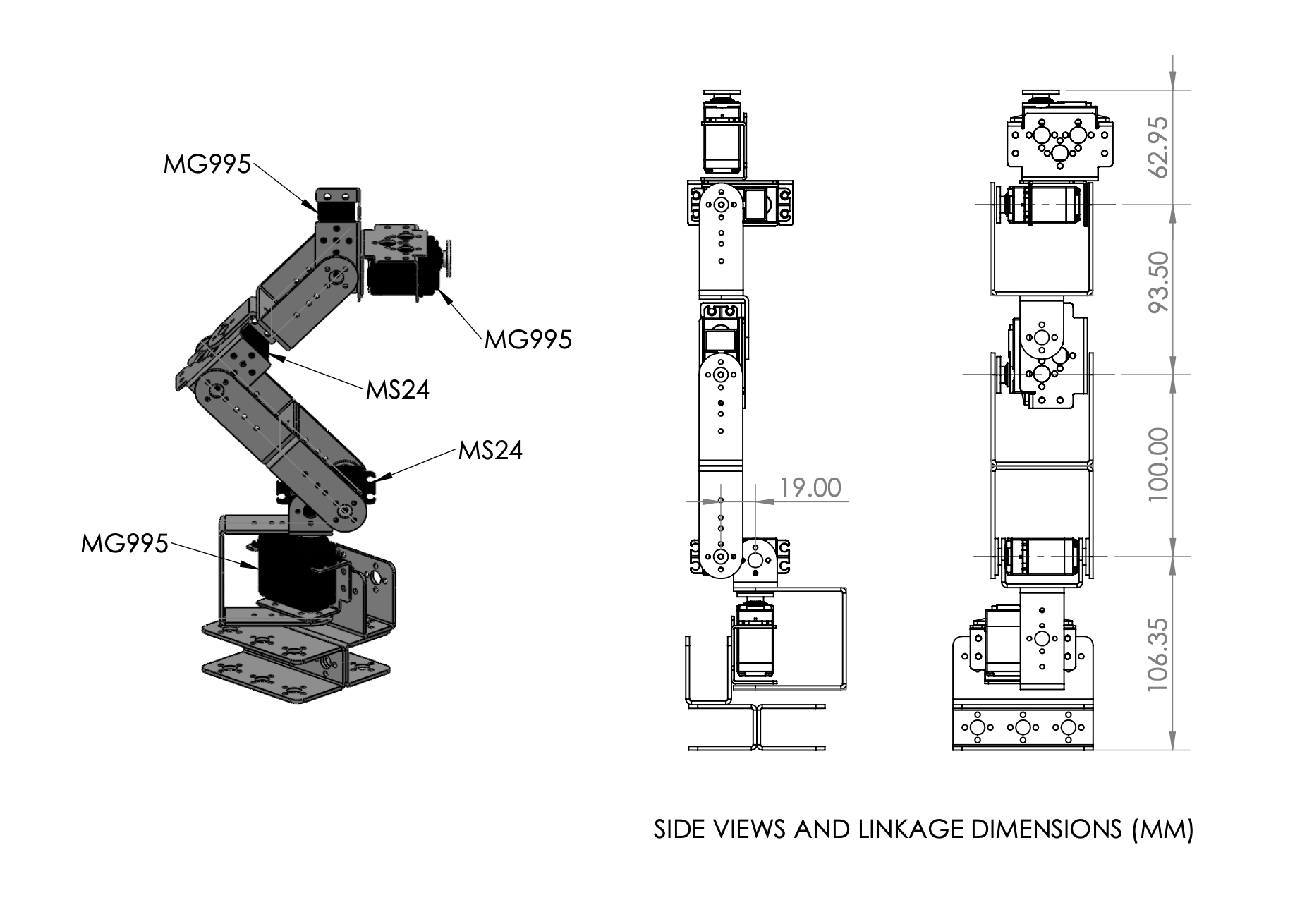

5DOF Robotic Arm
A five-degree-of-freedom robotic arm combining embedded control, inverse kinematics, and a custom simulation environment.
IMAGE AREAAdd a hero photograph, CAD render, or screenshot of the robotic arm here.
Replace this placeholder with your own image later.
Replace this placeholder with your own image later.
Inverse Kinematics
The core software challenge was converting a desired end-effector position into joint angles. The inverse kinematics solution provided a mathematical bridge between where the arm should go and how its individual joints should move.
Simulation
Raylib was used to create a 2D visualization and simulation environment. This made it possible to test and visualize arm movement before relying entirely on physical hardware.
Hardware & Embedded
The ESP32 provided the embedded platform for the robotic system. The project required thinking about the boundary between mathematical calculations, software, and physical actuators.
What I Learned
This project strengthened my understanding of coordinate systems, kinematics, C++, embedded development, and the importance of simulation when developing physical systems.
